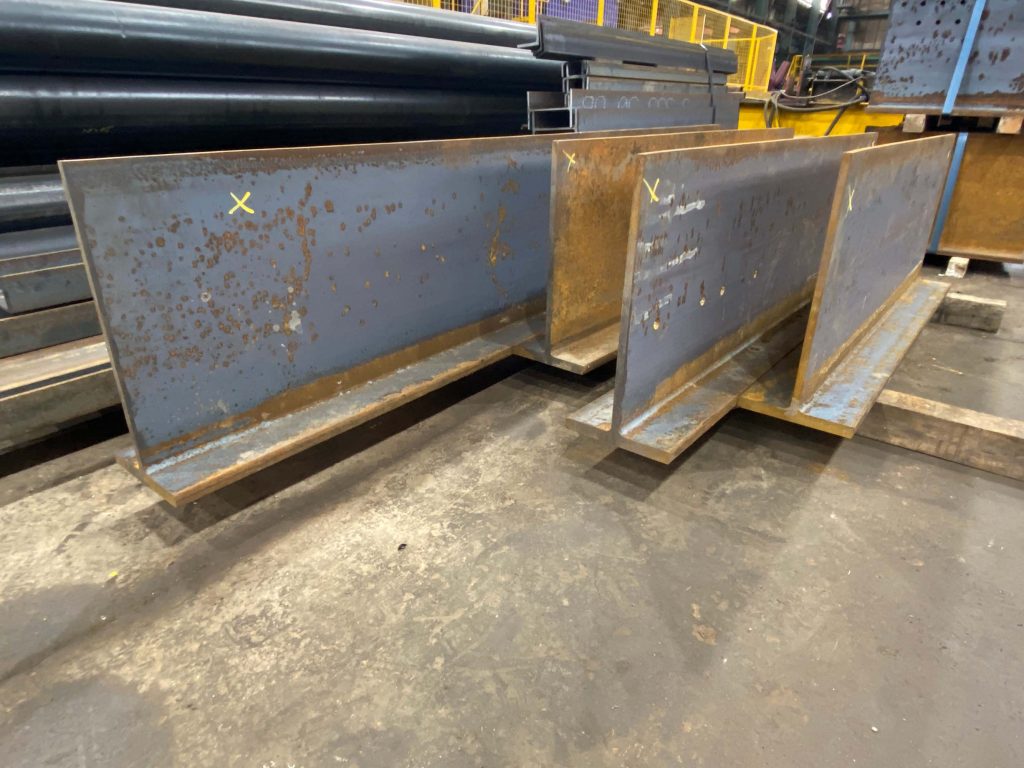

SC4 Tee Sections

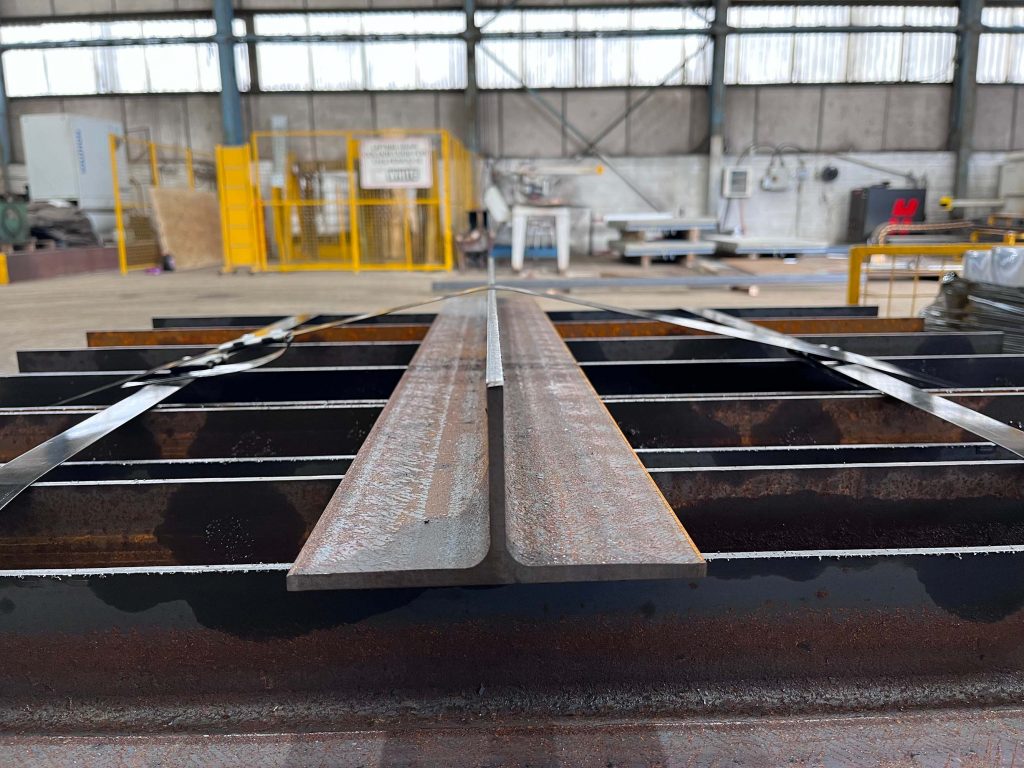

SC4 has a patented splitting line that can handle structural tee sections up to 1000mm wide and produces what is considered an industry leading superior quality Tee. This is achieved by using a COLD SPLITTING process that eliminates unnecessary heat input that oxy fuel splitting causes throughout the cutting area (Heat Affected Zone).

This patented cold splitting process minimises (often eliminates) web/stalk distortion which makes final straightening simple, quick and produces our superior quality Tee. This process can also be used to split hollow sections, reduce flanges on beams/columns and trim legs on angles to make bespoke sections.

Technical Specification

Patented COLD SPLITTING Process
Up to 1000mm Wide Splitting
25m Lengths
Offset or Centre splits
Splitting of hollow sections
In-house straightening press

Did you know?

SC4 can Saw and Drill your structural tee sections before splitting and our machines can also scribe part numbers and any layout marking requirements for fabrication/assembly.

If your contract requires bespoke or an adapted process, our technical team will review your needs and help build a strategy that can be incorporated into your estimate. We offer competitive lead times and flexibility to suit your project, working on both free issue material and full supply.

If you want the simplicity of a fully managed project SC4 can also provide:
